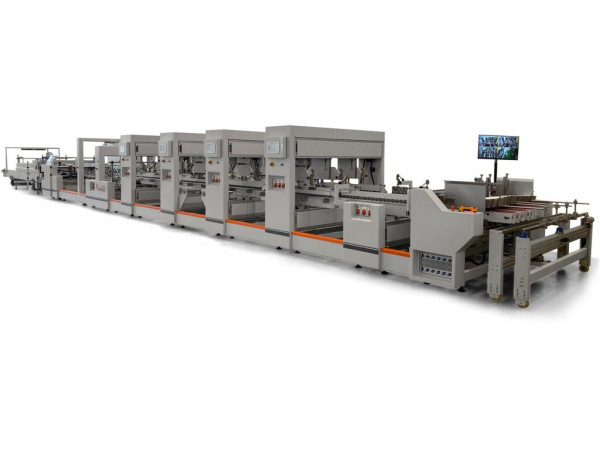

Folder gluer Versor Aristo 145-240

For 25 years, the Polish company Versor specializes in the design and manufacture of folder-gluers, has gained extensive experience and has a large base of installations around the world. The machines feature an innovative design, a wide range of options and high quality at the attractive price.

Versor Aristo developed in the widths range from 145 cm to 240 cm for high productivity and automation on corrugated boards.

The modern design of the machine with a "low" frame provides the operator with full and easy access to the machine adjustment elements. This design in combination with a computer control with touch screens on each section, remote control, feeder with fast adjustment ensures shortest set-up times.

For additional convenience and speed of set-up, folder gluer can be produced in a semi-automatic or fully automatic version.

Robust and reliable transporting and supporting elements of the machine allow to process a wide range of corrugated cardboard blanks, including the most rigid. The machine can be equipped with a large number of options and additional devices for processing of the most difficult types of boxes.

Versions of the machine (k1, k3, k4 or k6) allow to make boxes with one glue point , 2 (double walls boxes), 3 gluing point, with a crash-lock bottom, 4 or 6 point boxes with and without lid. It is also possible to make conical boxes, three-dimensional envelopes (for correspondence such as DHL envelope, mobile starter packs, etc.). The machine can be equipped with a section of preliminary alignment of the blanks, vacuum feeder with the servodrive, injector glue system ofor cold and / or hot glue from KAS (Germany), HHS (Germany).

• feeder with vacuum belts;

• feeder with the servodrive;
• Vacumatic alignment system with two independently adjustable belts;
• barcode control system;
• adhesive line control system;
• waste ejector;
• upper guide elements with drive;
• output conveyor with pressing function;
• different configuration of the glue systems for cold or hot glue;
• semi-automatic or automatic motorized machine adjustment system, and many other options.

• Blank width, cm: 145, 165, 185, 200, 210, 240

• Speed ​​max: 250 m / min.
• Materials: corrugated cardboard N, E, B, C, A, B, BC, BE
• Types of boxes: 1-6 gluing points, packages, envelopes, conical boxes
