Die cutting press Century MWB

Shandong Century Machinery Co., Ltd has been a leading manufacturer and supplier of die-cutting machines and a complete post-press processing lines for the corrugated packaging industry for decades. Shandong Century Machinery has 47,000 m2 of production space and has 240 employees. The company installed about 4500 machines in 55 countries of the world.

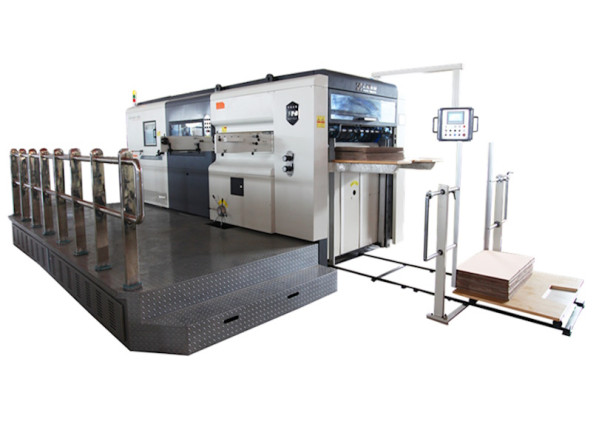

  Semi-automatic die-cutting machine Century MWB

Century MWB is designed for die-cutting of corrugated cardboard, packaging cardboard, plastic, POS, etc. Several models available - for material widths from 1330 to 2500 mm.

• Efficient manual stacking with automatic pallet lifting system and ramp preparation before stacking ensures fast pallet change
• The machine has versions with a stripping unit or without a stripping unit
• Centerline system provides quick job changeover
• Automatic lubrication system
• Machine drive designed for a maximum pressure force of 300-500 tons, is capable of cutting a wide range of materials
• Control system based on the Siemens Smartline Touch Panel
• Equipped with sensors and a safety devices, it provides 100% protection of operators from injuries and the machine from damage.

Technical data of Century MWB corrugated die-cutting presses

Construction of die cutter Century MWB

Pre-feeder device for preliminary preparation of material

Pre-feeder for preliminary preparation of pallets helps to prepare the next stack op the material and quickly change the pallet. When an operator feeds sheets to the press, another operator can simultaneously prepare another batch of sheets. After the sheet feeding is completed, the pallet prepared on the pre-feed device can be pushed to the automatic pallet lifting device. This will save about 5 minutes for the preparation of the pallet and increase productivity.

Feeder section

• Effective manual material feeding system
• Automatic pallet lifting system.
• Side guide for placing the center of the ramp.
• Suitable for E, B, C, A and double wall corrugated board.
• A camera to monitor the state of the section inside
• Device for adjusting the feed gap between sheets and grippers.
• Safety window and photo sensor provides protection for the operator and machine when the safety window is open.

Die-cutting section

• Pneumatic frame locking mechanism with push-button control to ensure safe and operator-friendly changing of the cutting plate.
• Centerline system for quick setting and changing of dies.
• Die cutting system for maximum cutting pressure up to 500 tons
• Automatic and independent self-lubricating system for smooth operation and longer service life
• Safety door and photoelectric device for safe operation.
• Hardened cutting plate and frame
• Protective window equipped for operator and machine safety.
• Pressure adjustment wheel. Easy and simple to use

Drive

• Polished worm wheel, which guarantees a smooth surface for precise cutting.
• Automatic lubrication system
• Casting construction to reduce vibration during machine operation.

Delivery section

• Side and front stops for neat stacking.
• Pallet delivery
• Protective window
• Stop photo sensor
• Viewing window to monitor sheet travel and making the necessary settings
• Device for adjusting sheet format

Electrical equipment

• Siemens PLC technology to ensure uninterrupted operation.
• Electrical components from Siemens, Schneider.
• All electrical components are CE compliant.
