Hochint Machinery Co., Ltd. specializes in the production of slitter rewinders, cross-cut sheeters, cross-cut equipment for the production of format paper. The company has its own design and development department and production facilities. The company's equipment is exported and works successfully in many countries of the world.

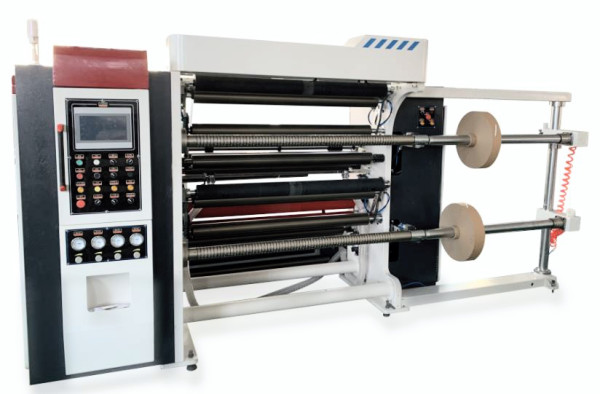

Hochint HQFC slitter rewinder is designed for accurate, high-speed slitting and rewinding of various types of film, laminates and paper. The machine is equipped with three servomotors, Siemens controller, touch screen control system with a convenient control interface.
Technical data of the Hochint HQFC slitter rewinder
- Material: PET, PVC, BOPP, 2-3 layer laminates, self-adhesive, paper
- Material thickness: 12-300 microns, paper 30-250 grams/sq.m.
- Width of unwind: 1300 – 1600 – 1800 mm
- Diameter of unwind: up to 1400 mm
- Unwind core: 3″ and 6″
- Cutting mode: blade against shaft with grooves, blade in the air
- Max. mechanical speed: 400 m/min
- Min cutting width: 30mm
- Diameter of rewind: up to 600 mm (800 mm on request)
Components of the Hochint HQFC slitter rewinder
Unwind

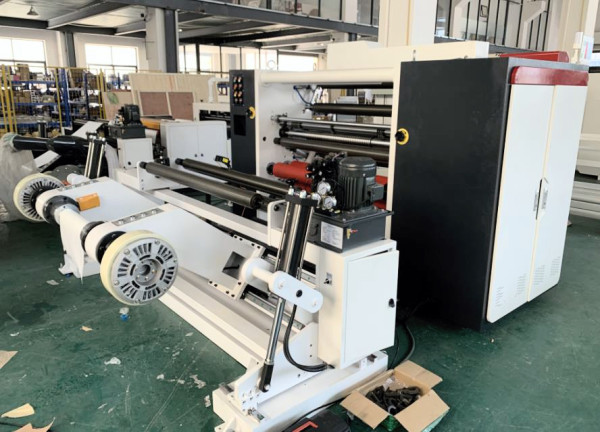

- separate shaftless unwind station with a hydraulic lift. The left and right motorized arms with are separately adjustable for convenient loading of the roll up to 1400 kg on 76 mm and 152 mm core. It is possible to manufacture a more compact machine with integrated unwind.
- shaft for balancing material tension from left to right
- magnetic brake to adjust the tension, automatically adjusted by the computer to maintain a constant material tension
- ultrasonic edge control of the of the material, automatic adjustment of the side position of the roll
Traction section
- traction roller is driven by a servomotor, synchronous belt transmission
- traction roller and traction pressure roller - rubberized, dynamically and statically balanced, suitable for a wide range of materials and high-speed work
- Cutting section
- cutting method: flat knife, cutting in the air or against the grooved shaft
- number of knife holders - from 10 pcs. standard blade holders with ruler, easy to change.
- knife up/down adjustment and precise left/right adjustment are controlled by worm gear reducers
- edge trimming - pipelines for removal of the trimmed edge and trim extracting fan
Rewinding section
- two rewinding differential shafts 76 mm, side unloading
- servo motors (2 sets) with high-precision SMC proportional valves for rewinding tension control
- Pneumatic support arms and pneumatic shaft lock for rewind shafts
- pneumatic lay on rollers, pressure can be adjusted
- laser pointers to indicate the position of the cores
- antistatic bar for each rewinding shaft
- role unloading stand
Computer control and touch screen
- color 10-inch touch screen and computer (Siemens)
- English language interface on the touch screen
- automatic calculation and control of tension and diameter: set the initial tension on the touch screen for your materials, the computer automatically and accurately determines the current tension and current diameter role
- counter with automatic alarm and stop function for meters of winding
- counter with an automatic alarm and a winding diameter stop function
- one-button auto-acceleration function: press one button, the machine will smoothly and automatically accelerate to the set speed
- rotation of the winding shafts forward and backward
- error diagnosis function on the touch screen
